La caja está hecha de plástico ABS, con un resorte retráctil incorporado y un cable de acero inoxida
Forma de fijación de la caja:
Cinta adhesiva doble (El montaje con tornillos está disponible, el estándar será Tap)
Ubicaciones de salida de cables:
Solo uno (lado de la caja)
Tamaño de la caja:
32 (largo) × 31,3 (ancho) × 14,2 (alto) mm
Colores de la caja:
Negro (blanco y colores personalizados disponibles, el estándar será negro)
Fuerzas de retracción disponibles:
1/3LB (1/8LB, 1/4LB y fuerza personalizada están disponibles, el estándar será 1/3LB)
Colores de cables:
El nailon transparente cubre el cable de acero inoxidable (el nailon negro está cubierto y el color
Longitud del cable retráctil:
95 cm (la longitud personalizada está disponible, máx.: 120 cm, el estándar será 95 cm)
Diámetro del cable:
0,9 mm (0,6 mm, 1,0 mm, 1,2 mm y tamaños personalizados disponibles, el estándar será 0,9 mm)
Detalles del extremo del cable:
Bucle fijo con gancho para llaves.
Video Display about RW1124 Pull Box

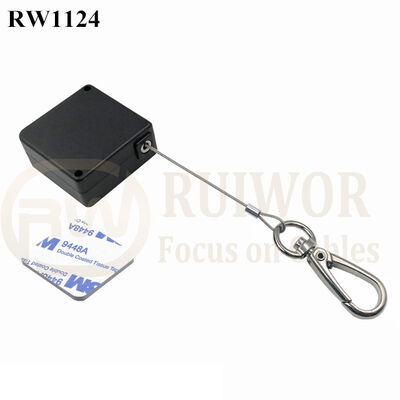

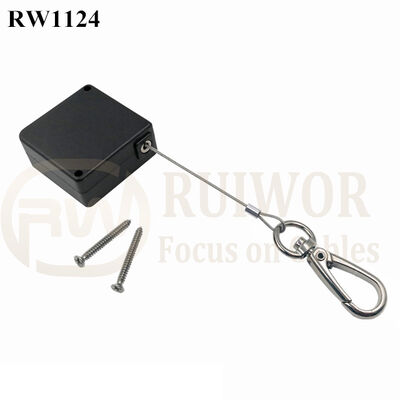

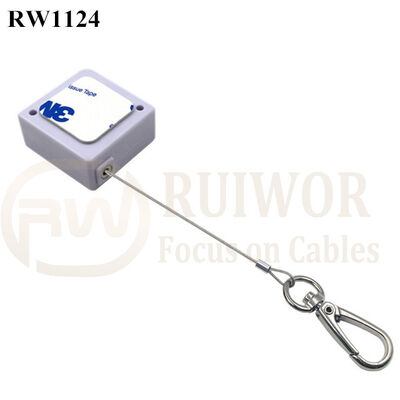

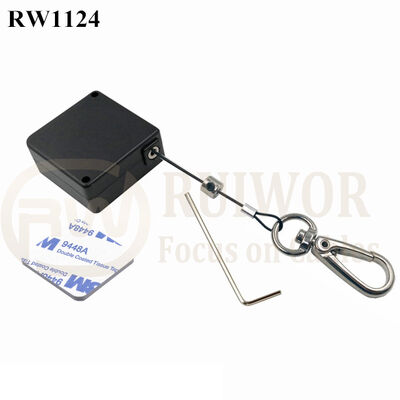

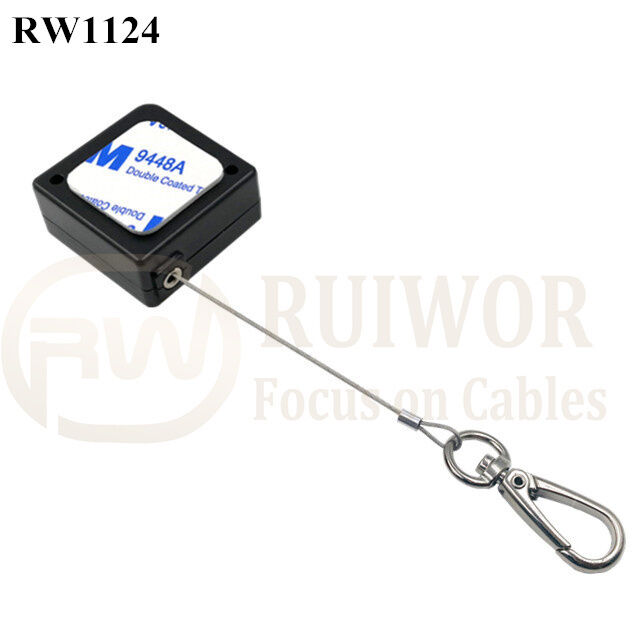

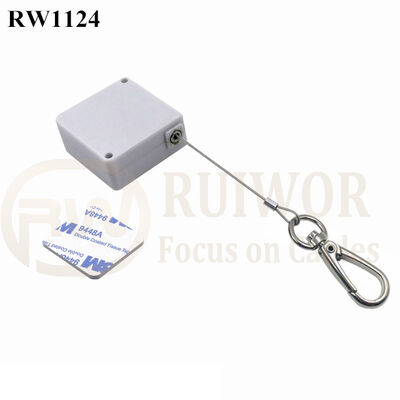

RW1124 Square Pull Box Plus Key Hook
Pull Box also known as Position-setting Pull box, Recoil Pull box,recoilers, security tether and pull-box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.
RW1124 Pull Box has a cure square shape attain a Nice Design, this Pull Box is very similar as RW1700 Retractor but a smaller and simple one, we provide this samller one to meet some of customers needs that is because some of customers want to buy cheaper and simple Pull Box.
RW1124 Pull Box Specifications
Customize Customer-specified logo is available.
We can Customize Customer-specified logo on the products, the size and the color of Logo all can be customized. if need customize logo, welcome to contact with us. Following uses Ruiwor's logo as an example for reference.
Remark: For RW1124 Pull Box, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW1124 Pull Box can not meet your requirements, please return to the top and send us an inquiry to discuss more details.
Similar Products to RW1124 Pull Box
If above RW1124 Cuboid Pull Box is not the best product you need, Following similar Cuboid Pull Box for your reference: 1. The Pull Box with same box but different cable ends
2. The Pull Box with same cable ends but different box shapes
